Fairino FR5 | 6DOF | 922m | 5kg
Variants: FR5 - IP54 Standard
Versatile Cobot for Precision Industrial Automation
The Fairino FR5 is a 6-axis collaborative robot with a payload of 5 kg and a reach of 922 mm. With a repeatability of ±0.02 mm and a compact design (approx. 22 kg), it is ideal for precise robotics in industrial automation. Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP. Programming is possible via C#, C++, Python, ROS/ROS2. Control is provided via a 10.1" teach pendant or web app, with real-time EtherCAT architecture.
Typical applications include pick & place, quality inspection, gluing, and assembly. The FR5 is perfect for integrators and manufacturers in electronics, automotive, and new retail sectors seeking a powerful and flexible robotic arm.
Highlights
FR5
FR5 took the lead in obtaining the first CR certification in the field of cobots.It adopts a self-developed real-time control system, which integrates fully upgraded features such as flexibility, safety, flexibility, and ease operation, as well as excellent industrial-grade precision and stability.
FR Productrange
Prepared for every use case, with payloads ranging from 3 kg to 20 kg.

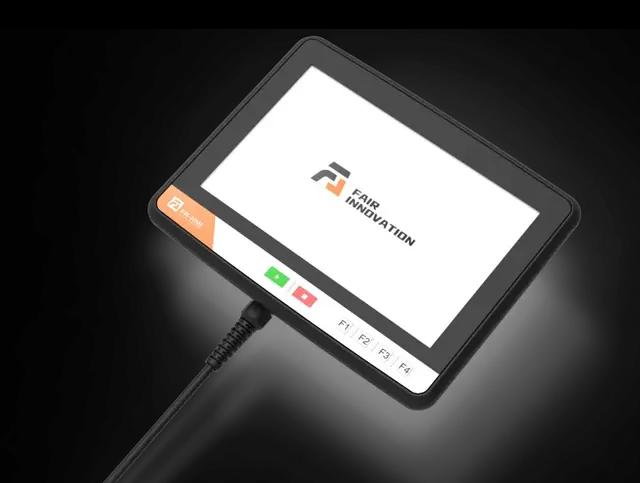

Fairino Teach Pendant
The Fairino Teach Pendant is an ergonomic, portable control device featuring a 10.1-inch touchscreen, designed for intuitive programming of collaborative robots.

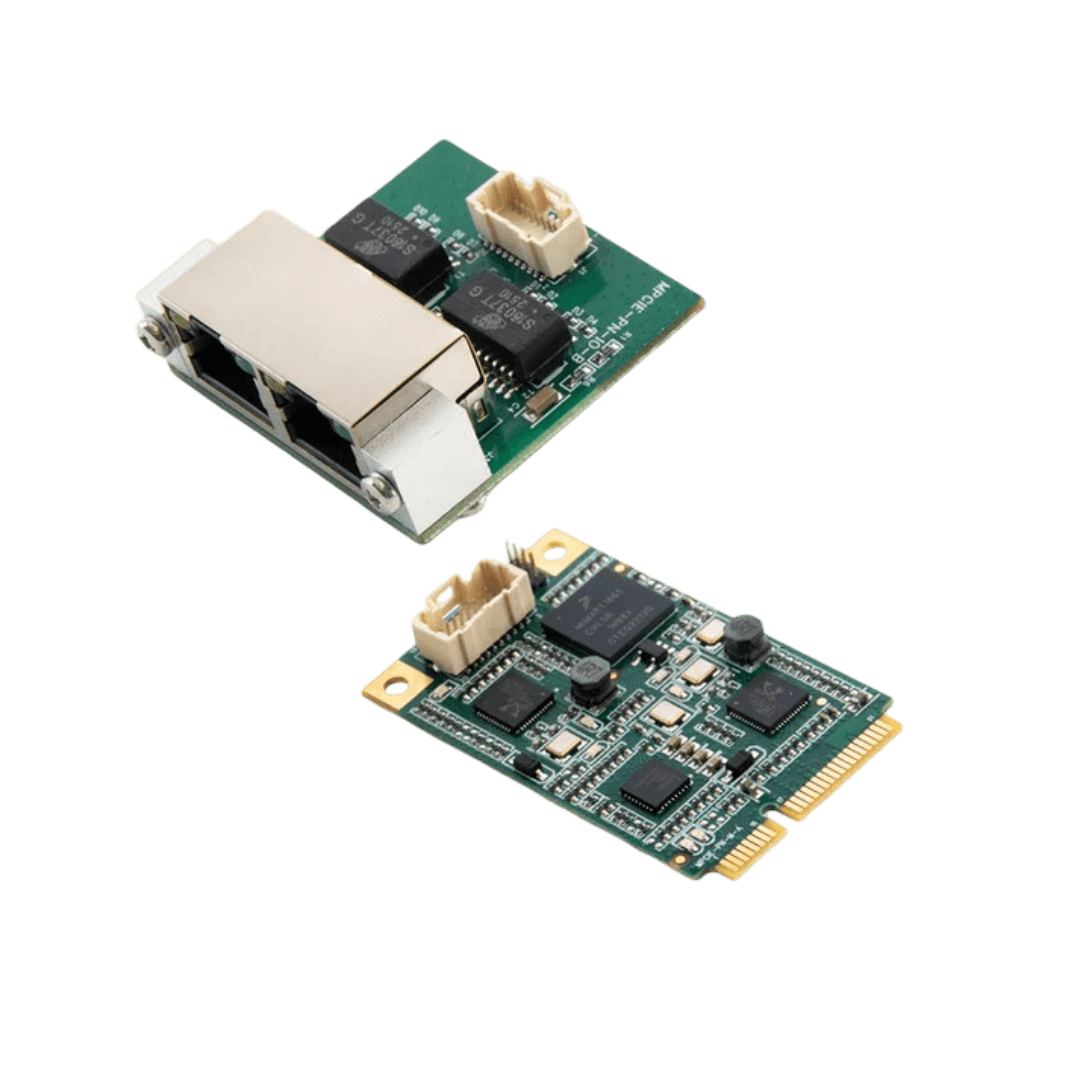

Fairino Communication Card
The Fairino Profinet & EtherNet/IP communication card is designed for easy and reliable integration of Fairino robots into PLC‑controlled automation systems.

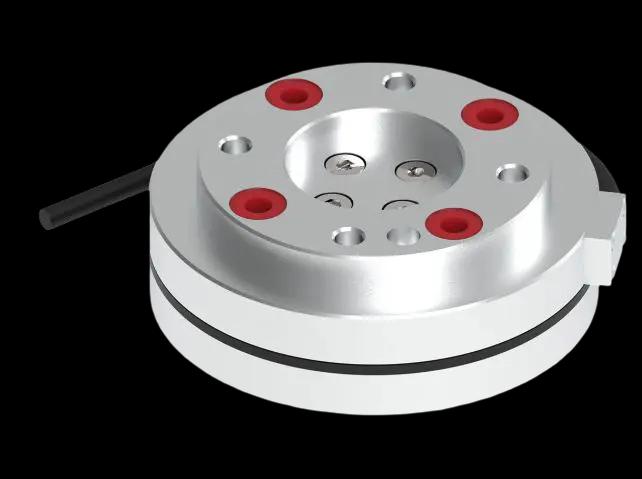

Force Torque Sensor
The Force Torque Sensor gives collaborative robots precise tactile feedback for advanced automation tasks.
